Technical Specifications

• Working height 58.56 m
• Platform length 2.44 m
• Platform width 0.91 m
• Turning radius outside 9.52 m
• Weight 27352 kg
• Persons 2
• Max. Reach horizontal 24,38 m
• Net load 450 kg
• Travel speed 4.5 km/h
• max. climbing ability 40 %
• Engine manuf. Deutz
• Engine type TD3.6
• Engine power 73.4 kW


Works carried out by Engineer:

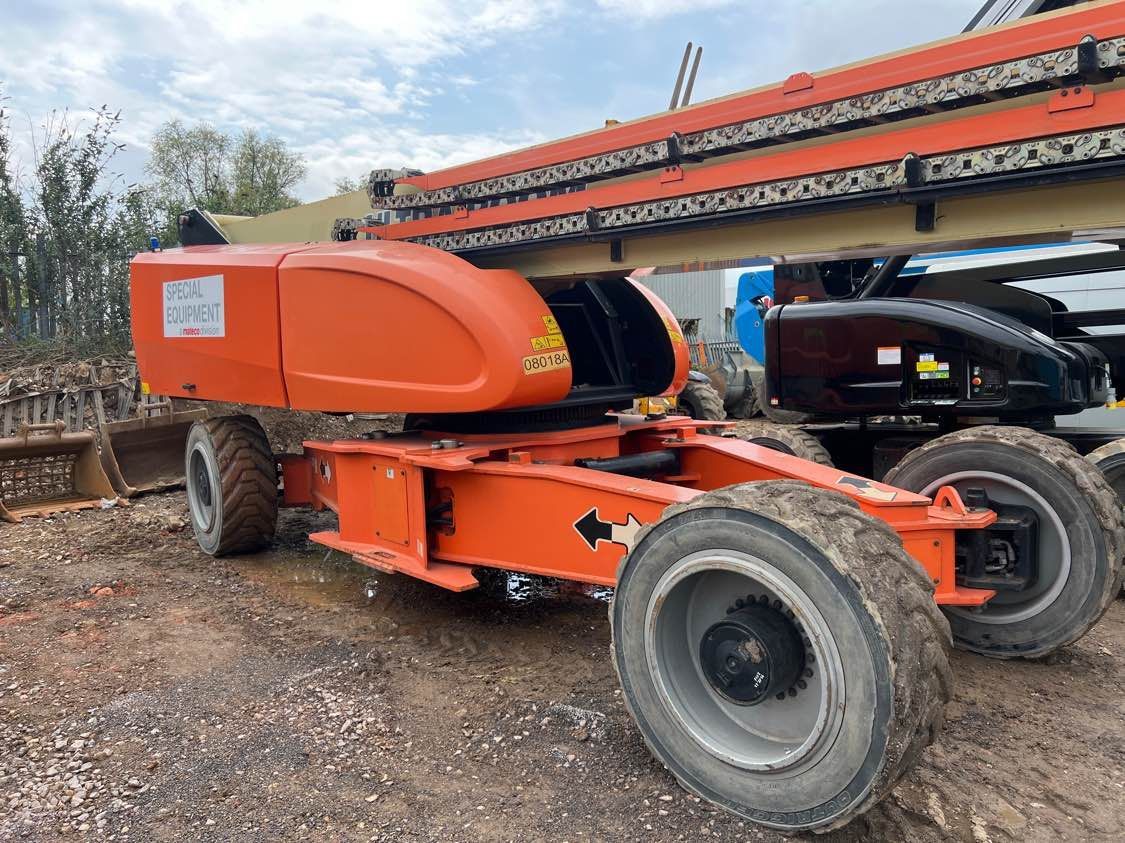

Requested pre delivery inspection to this JLG 1850 machine checked for operators manual, structural damage, battery levels, gates, tyres. All hoses checked for any damage or leaks, all oils and coolants checked .key switches and emergency stops checked. checked all elevating and lowering to make sure machine is safe to go on site.

Technical Specifications

• Working height 17.2 m
• Platform length 1.8 m
• Platform width 0.8 m
• Weight 5000 kg
• Net load 225 kg
• Max. Reach horizontal 9.4 m
• Persons 2
• Rotation180 °
• Engine manuf. Kohler
• Engine type KDI 2504

Reported Fault

Report of issue with the battery

Works carried out by Engineer:

Arrived on site located machine, customer explained machine was not holding charge and only lasting 30 Minuets. On inspection found machine to be discharged on further investigation found that the AGM Batteries are not holding charge and require replacement. Returned to site to replace batteries, Machine functioning as it should.

Technical Specifications

• Working Height 17.00m
• Outreach 9.10m
• Rotation 680°
• Safe Working Load 215kg

Emergency lowering from the basket

Dual fuel option

Combination Articulated boom with top telescope

140° Flick boom complete with basket rotation

Reported Fault

Jib not lowering

Works carried out by Engineer:

Engineer arrived on site, on speaking with the customer we found out that the machine would hub up but not down, the customers workmen had disconnected the hydraulic hose for the down jib function to enable the jib to lower, on further investigation when all hoses had been re-attached the machine would only jib up not down, removed the up and down jib hydraulic hoses and reversed them this seem to clear the fault on the jib, we then put the hydraulic hoses back to their correct places, I topped up the hydraulic oil, carry out function test from ground controls and basket controls machine operating as should be. Customer happy with result.

Technical Specifications

• Nominal load at COG 6 t
• Max. Reach horizontal 26 m
• Capacity at full forward reach 0.5 t
• Lifting height 29.8 m
• Capacity at full lift height 2.5 t
• Weight 21.8 t
• Travel speed 40 km/h
• max. climbing ability 44 %
• Engine manuf. Volvo

Works carried out by Engineer:

Our engineer carried out a 500 hour service on this Magni RTH and a thorough examination (LOLER)

Technical Specifications

• Work Height Max.11.7m 38.4ft
• A-Platform Height-Raised 9.7m 31.8ft
• B-Platform Height-Stowed1.41m 4.62ft
• C-Platform Length 2.79m 9.15ft
• D-Platform Width 1.6m 5.25ft
• E-Overall Length 3.12m 10.2ft
• F-Overall Width 1.79m 5.81ft
• G-Overall Height-Guardrails Up 2.55m 8.36ft
• Overall Height-Guardrails Down 1.89m 6.2ft
• Extension Deck 1.52m 4.99ft

Reported Fault

GCU Fault

Works carried out by Engineer:

Engineer arrived on site to locate machine, the machine would not start. New GCU to fit and calibrate,  on further investigation engineer found that the main Earth lead to the engine bell housing had snapped and tucked itself under the scissor pack, engineer carried out a repair putting a new earth lug on the earth cable and attached it to the engine bell housing, carried out a function test and engine started and machine operated, It was suggested the machine be taken out of service until it is recovered.

Technical Specifications

• Max. working height 28 m
• Max. basket floor height 25 m
• Max work cage size 6.15 x 2.50 m
• Platform Extension 8.25 x 2.50 m
• Max safe working load 1000 kg

• Stowed Dimensions
• Weight 21,910 kg
• Height in transport position 3.89 m
• Length in transport position 6.57 m

Reported Fault

Machine will not lift

Works carried out by Engineer:

Machine had end of line grease switch fault. We pulsed 24v to x307 on the extension module to flash the switch so that we could get the grease pump to kick in. Once the grease pot started it run for about 10min reaching a pressure of 100bar. The grease cycle finished machine was function tested by myself and the customer and fault did not reappear.

Technical Specifications

• Max. working height 21.8m(71.5ft)
• Max.  outreach 16.6m(54.1ft)
• Machine width 2.49m(98inft)
• Platform capacity 300/450kg(661/992lbs)
• Machine weight 12000kg

Thorough examination (LOLER)

Works carried out by Engineer: Carried out thorough examination.

Technical Specifications

• Max. working height 33m
• Max Platform Height 31m
• Overall Width1.4m
• Overall Length 6.6m
• Stowed Height 3.2m
• Platform Capacity 600kg
• Gross Machine Weight 23950kg

Thorough examination (LOLER) carried out on this HL330 E14

Technical Specifications

• Working Height: 28m
• Outreach: 19m
• Machine Width: 2.49m
• Fuel Type: Bi-Fuel
• Weight: 14650kg

ROPE REPLACMENT REQUIRED

Works carried out by Engineer:

Removed the boom section and ropes, Replaced with new ropes.

Replaced boom section and warepads.
